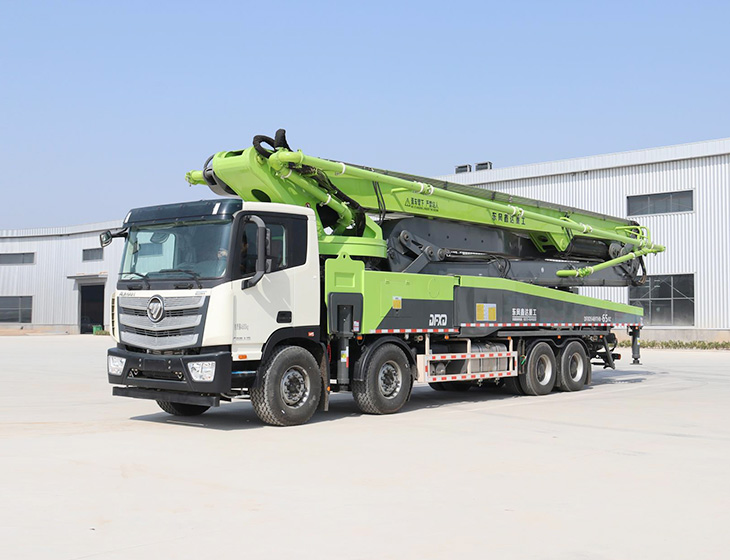

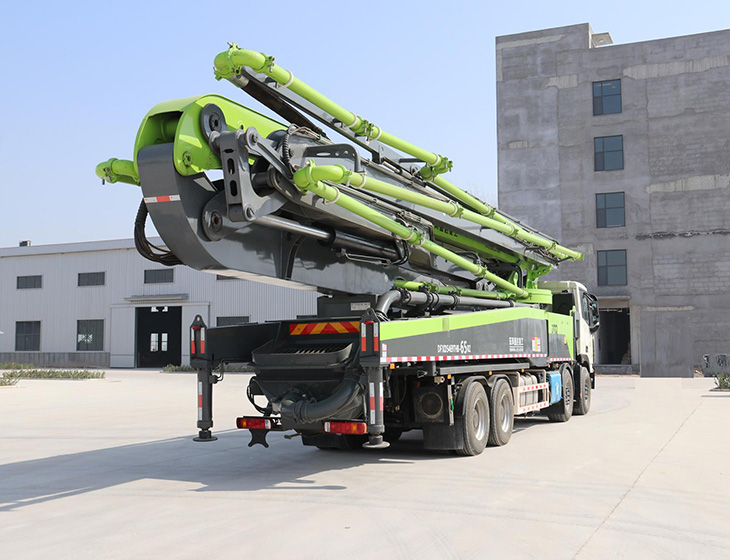

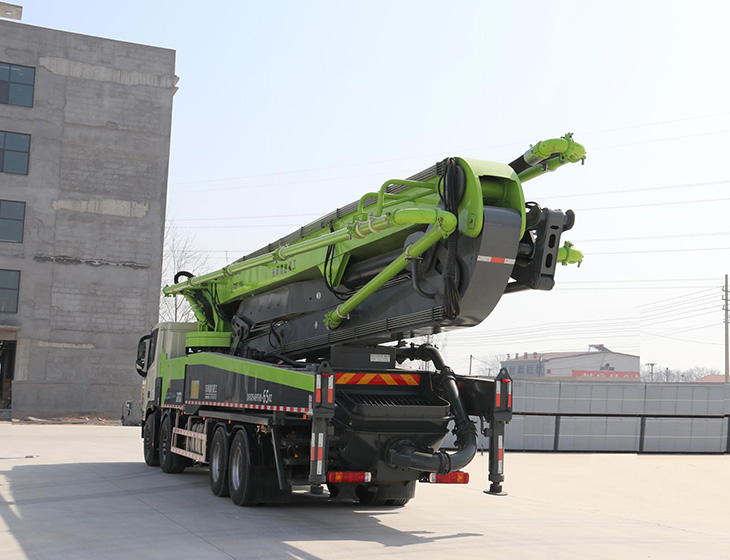

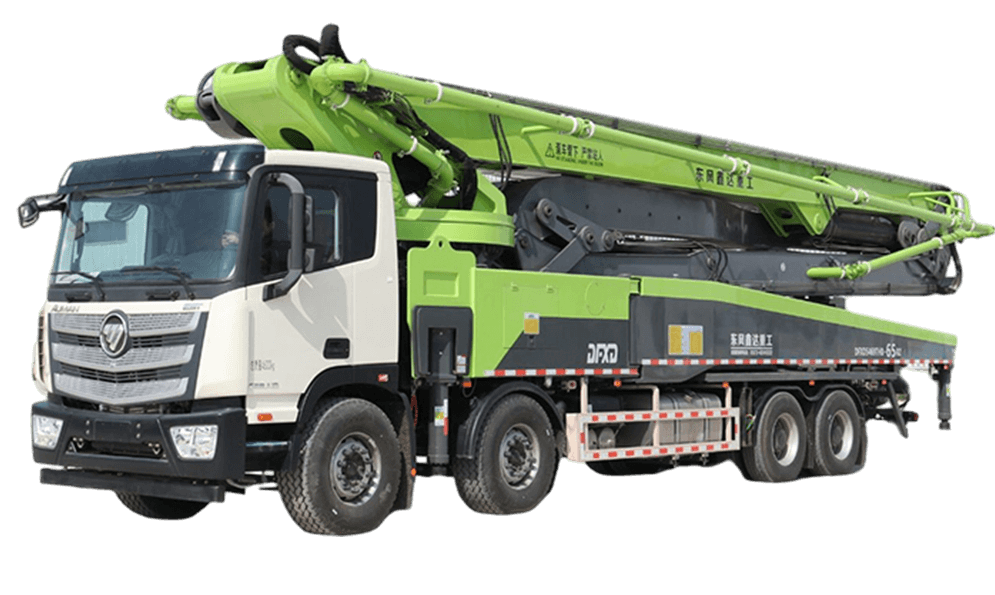

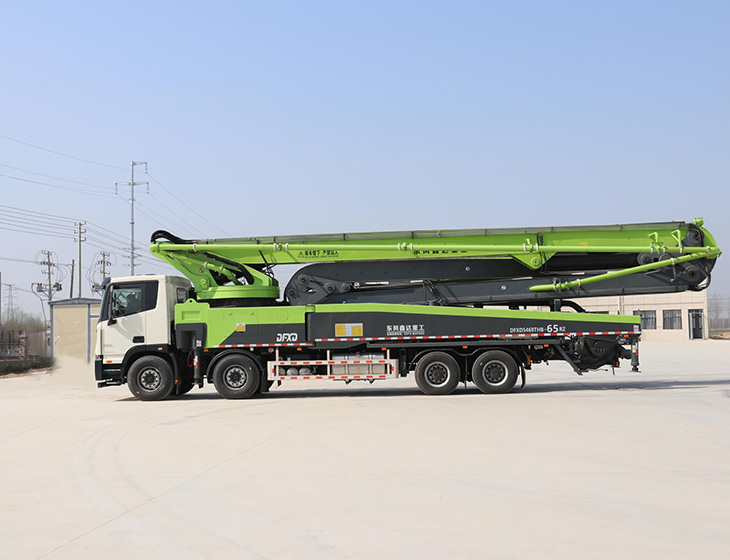

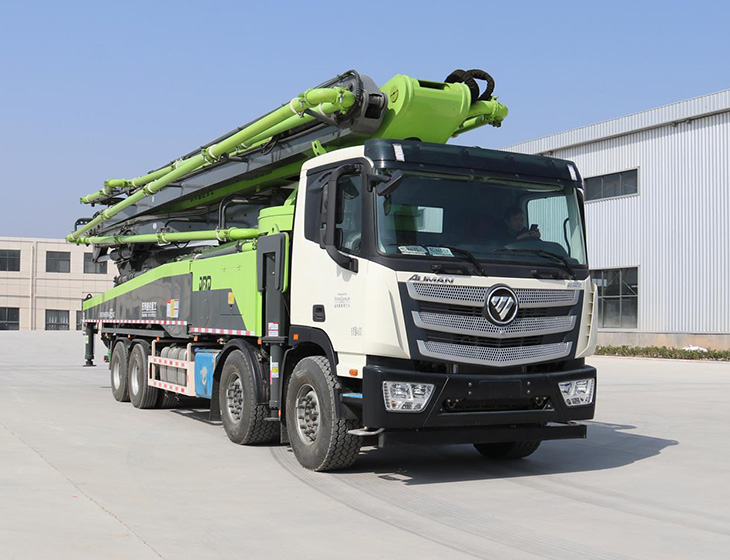

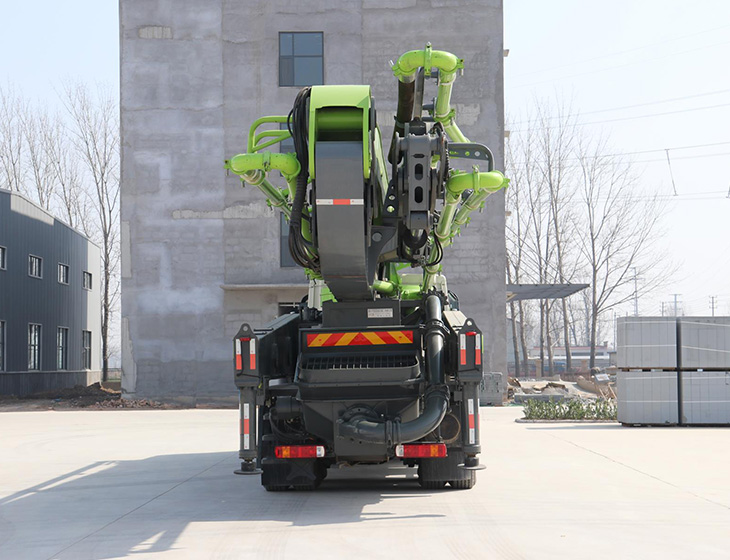

65 Meters of Concrete Pump Truck

Set a number of patents in one, the first longest four-bridge regulations pump truck in China.

Technical parameters

Chassis:

Fukuda Daimler

Emission standard:

Six countries

Engine brand:

Commins

Engine horsepower:

470

Bridge number:

Wheel base:

2100+4800+1350

DXD5356THBL	project		unit	technical parameters
Chassis and complete vehicle parameters	chassis		-	Fukuda Daimler
	emission standard		-	Six countries
	Engine brand		-	Commins
	Engine horsepower		Ps	470
	Bridge number		-	4
	wheel base		mm	2100+4800+1350
	Total length * total width * total height		mm	1530025504000
	Vehicle quality		g	46000
Arm frame and support leg parameters	Maximum fabric height		mm	64300
	Maximum fabric radius		mm	59000
	Maximum fabric depth		mm	48000
	Arm frame folding mode		-	RZ
	The first arm	length	mm	13650
	The first arm	corner	°	89°
	The second arm	length	mm	10350
	The second arm	corner	°	180°
	The third arm	length	mm	9700
	The third arm	corner	°	180°
	The fourth arm	length	mm	13000
	The fourth arm	corner	°	235°
	The fifth arm	length	mm	9200
	The fifth arm	corner	°	180°
	The sixth arm	length	mm	4500
	The sixth arm	corner	°	90°
	Turn table rotation Angle		-	359°

	Open the leg	-	X- H
	Front leg spread width	mm	10300
	Rear leg spread width	mm	11800
Pumping system	Maximum theoretical pumping capacity	m³/h	180
	Maximum export pressure	Mpa	8.5
	The number of theoretical pumps	Time / minute	26
	Hydraulic system pressure	Mpa	32
	The inner diameter of the conveying cylinder	mm	260
	Delivery cylinder trip	mm	2100
	Transmission pipe diameter	mm	125
	Hydraulic oil cooling mode	-	air patenting
	Pumping the concrete collapse degree	mm	160-220
	Maximum aggregate size	mm	40
	Hydraulic system type	-	open-type system

More Parameter Information

Dongfeng Xinda 65 Meters Pump Truck Advantage

Tailor your best partner

In 2021, the first four-bridge 65-meter pump truck in China, and the longest meter of the four Bridges in the pump truck industry has been solved Long boom pump truck through the poor, the construction work covers a large area of difficulties.

The whole vehicle design, reasonable and lean

The total length of the vehicle is 15.3 meters, and the total height is 4 meters, which can easily meet the national needs and use for urban planning, high-speed rail, high-speed rail, water conservancy and other construction projects.

Pumping work, strong and efficient

The pumping system adopts double 190 main oil pump, which is strong and efficient, and the maximum theoretical pumping capacity can reach 180m³ / h.

The optimal design and material

Adopting modern processing and production technology, heavy investment in the research and development of lightweight boom structure, the boom structure boom connection design, the turntable adopts the large "S" tilt technology, the pump truck leg span is small, covers a smaller area, the boom stability can be higher.

Safe, reliable, stable and efficient

Using the active shock absorption technology of the boom, the vibration range of the boom under the full working condition is ± 0.2 meters, and the connection design of the open shaft structure boom reduces the impact on the key parts of the boom by more than 30%.

Energy conservation and emission reduction, economic reliability

The pumping displacement is automatically matched with the engine power, and during the working process, the fuel consumption is reduced by 15%. Wireless remote control one-key start system, easy to operate, economical and reliable.

Intelligent digital, real-time control

The electronic control system is connected with the cloud platform, freely mastering the device status, self-diagnosis, etc., and can view the device position, driving path, and working time at the terminal in real time.

Professional focus, whole-hearted service

Free one-to-one on-site training service, 1 hour rapid response, 24 hours after-sales service, efficient service, the whole worry.
