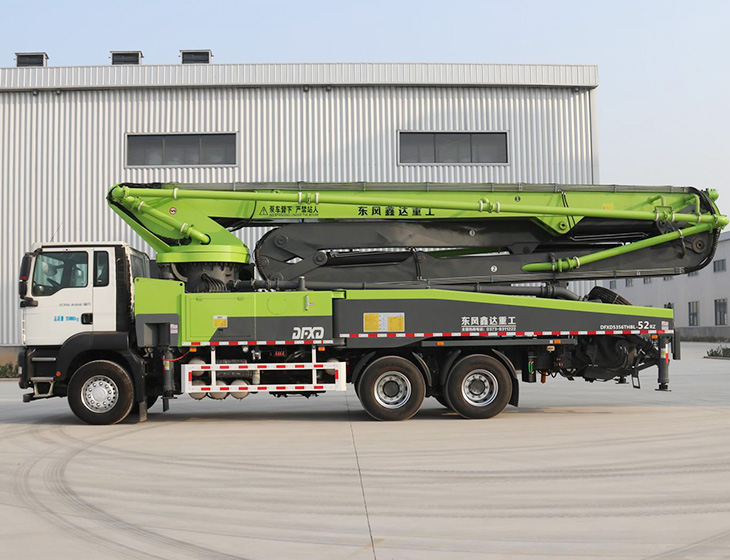

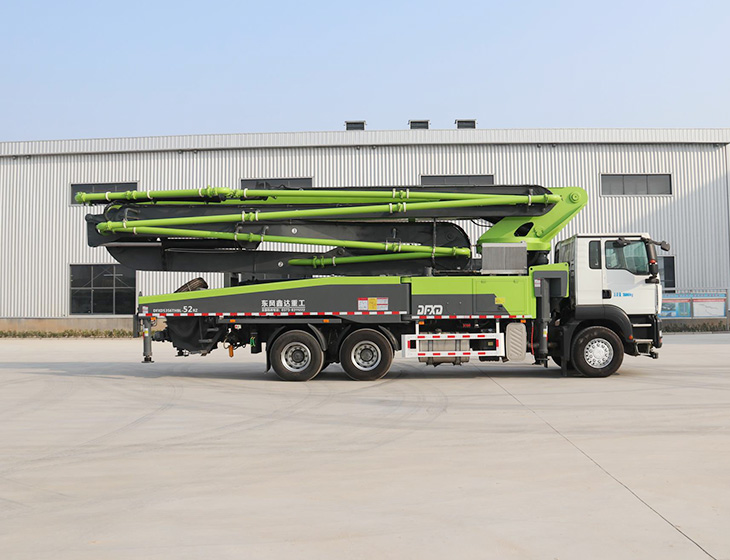

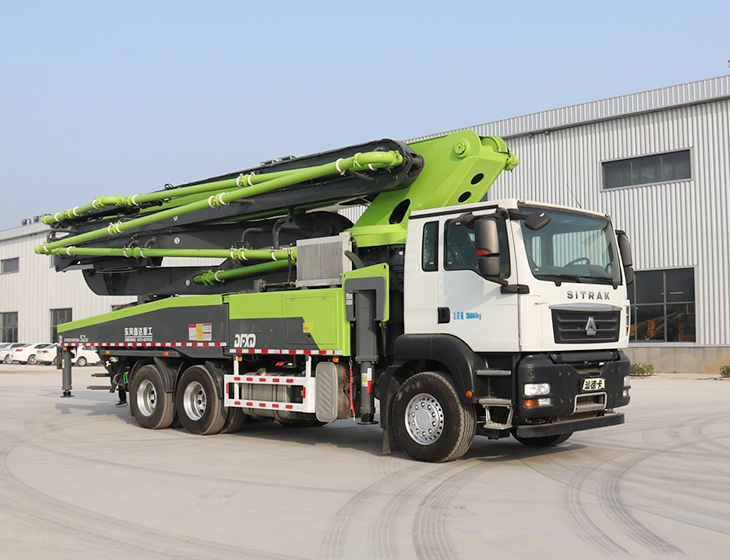

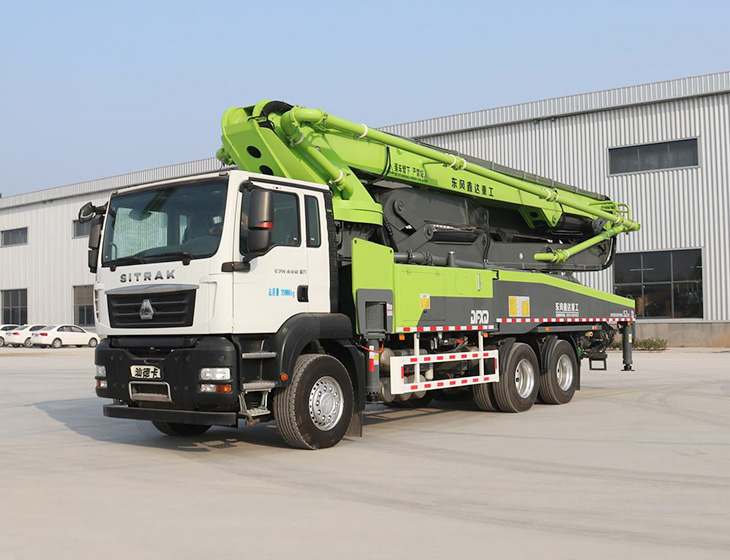

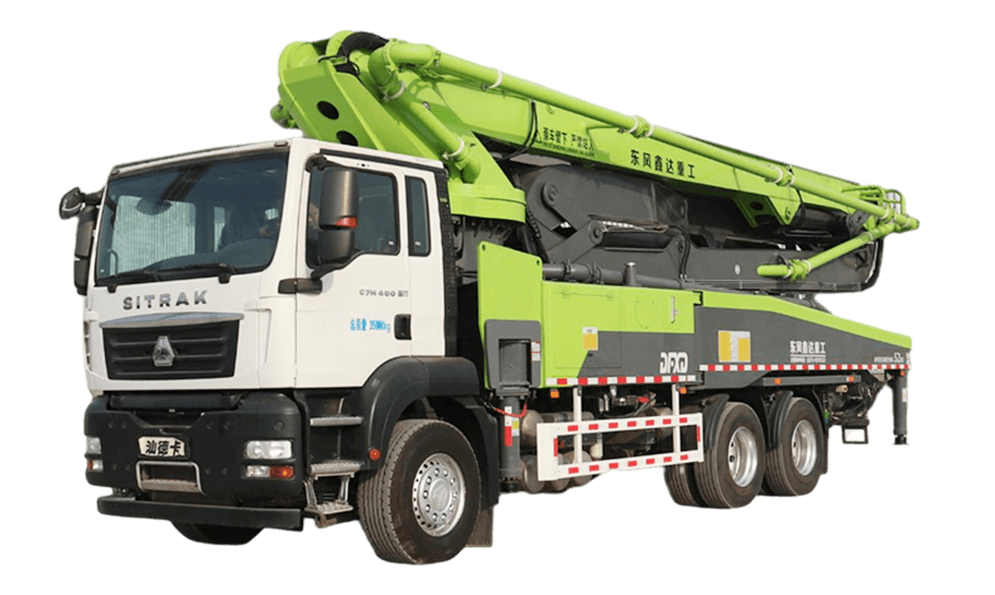

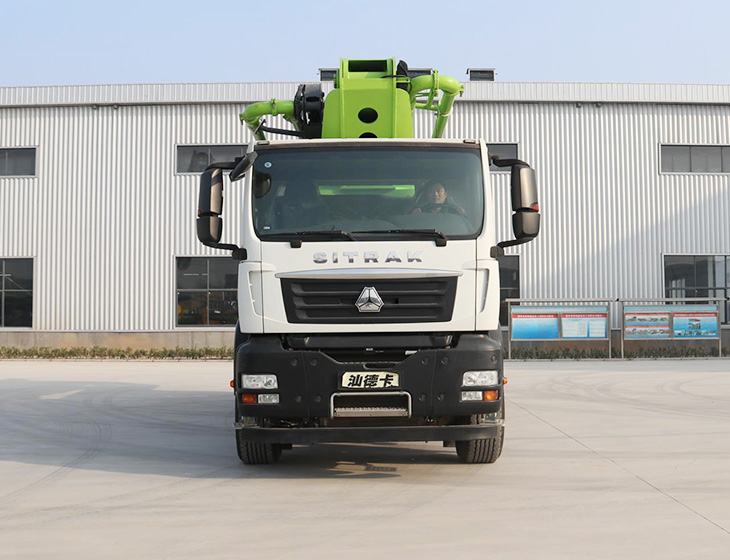

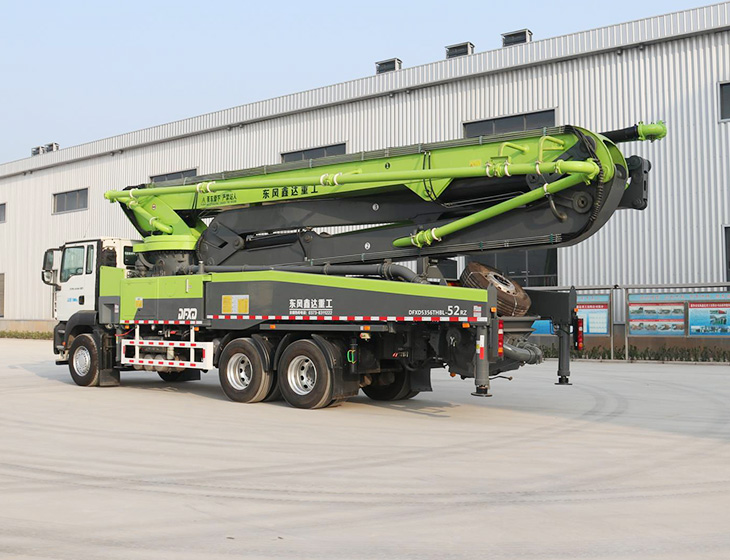

52 Meters of Concrete Pump Truck

Technical parameters

Chassis:

Sinotruk Sitrak / Isuzu

Emission standard:

Six countries

Engine brand:

German Man / Isuzu

Engine horsepower:

400/420

Bridge number:

Wheel base:

4600+1400/4800+1370

DXD5356THBL	project		unit	technical parameters
Chassis and complete vehicle parameters	chassis		-	Sinotruk Sitrak / Isuzu
	emission standard		-	Six countries
	Engine brand		-	German Man / Isuzu
	Engine horsepower		Ps	400/420
	Bridge number		-	3
	wheel base		mm	4600+1400/4800+1370
	Total length * total width * total height		mm	1230025004000
	Vehicle quality		g	35000
Arm frame and support leg parameters	Maximum fabric height		mm	51100
	Maximum fabric radius		mm	45200
	Maximum fabric depth		mm	33900
	Arm frame folding mode		-	RZ
	The first arm	length	mm	10600
	The first arm	corner	°	89°
	The second arm	length	mm	8750
	The second arm	corner	°	180°
	The third arm	length	mm	8450
	The third arm	corner	°	180°
	The fourth arm	length	mm	9530
	The fourth arm	corner	°	235°
	The fifth arm	length	mm	6900
	The fifth arm	corner	°	180°
	The sixth arm	length	mm	3500
	The sixth arm	corner	°	90°

	Open the leg	-	X- H
	Front leg spread width	mm	10100
	Rear leg spread width	mm	10800
Pumping system	Maximum theoretical pumping capacity	m³/h	140
	Maximum export pressure	Mpa	8.5
	The number of theoretical pumps	Time / minute	25
	Hydraulic system pressure	Mpa	32
	The inner diameter of the conveying cylinder	mm	260
	Delivery cylinder trip	mm	1800
	Transmission pipe diameter	mm	125
	Hydraulic oil cooling mode	-	air patenting
	Pumping the concrete collapse degree	mm	160-220
	Maximum aggregate size	mm	40
	Hydraulic system type	-	open-type system

More Parameter Information

Dongfeng Xinda 52 Meters Pump Truck Advantage

Tailor your best partner

In 2016, the 50 m boom pump car, the limit number of meters, and the legal car is not overweight.

The whole vehicle design, reasonable and lean

The total length of the vehicle is 12.3 meters, and the total height is 4 meters, which can easily meet the national urban planning, high- speed rail, high-speed rail, water conservancy, etc Demand and use of construction projects.

Pumping work, strong and efficient

The pumping system adopts a large diameter conveying cylinder, which is strong and efficient, and the maximum theoretical pumping capacity can reach 140m³ / h.

The optimal design and material

The use of modern processing and production technology, heavy investment in the research and development of lightweight boom structure, the boom through axis structure boom connection design, the table using "S" tilt technology, the pump truck leg span is smaller, the boom stability can be higher.

Safe, reliable, stable and efficient

Using the active shock absorption technology of the boom, the vibration range of the boom under the full working condition is ± 0.2 meters, and the connection design of the open shaft structure boom reduces the impact on the key parts of the boom by more than 30%.

Energy conservation and emission reduction, economic reliability

The pumping displacement is automatically matched with the engine power, and adapadjusted during the working process, the fuel consumption is reduced by 15%. Wireless remote control with one key start Dynamic system, easy to operate, economical and reliable.

Intelligent digital, real-time control

The electronic control system is connected with the cloud platform, freely mastering the device status, self-diagnosis, etc., and can view the device position, driving path, and working time at the terminal in real time.

Professional focus, whole-hearted service

Free one-to-one on-site training service, free door-to-door inspection service, 1 hour rapid response, 24 hours after-sales service, efficient service, The whole worry-free.
