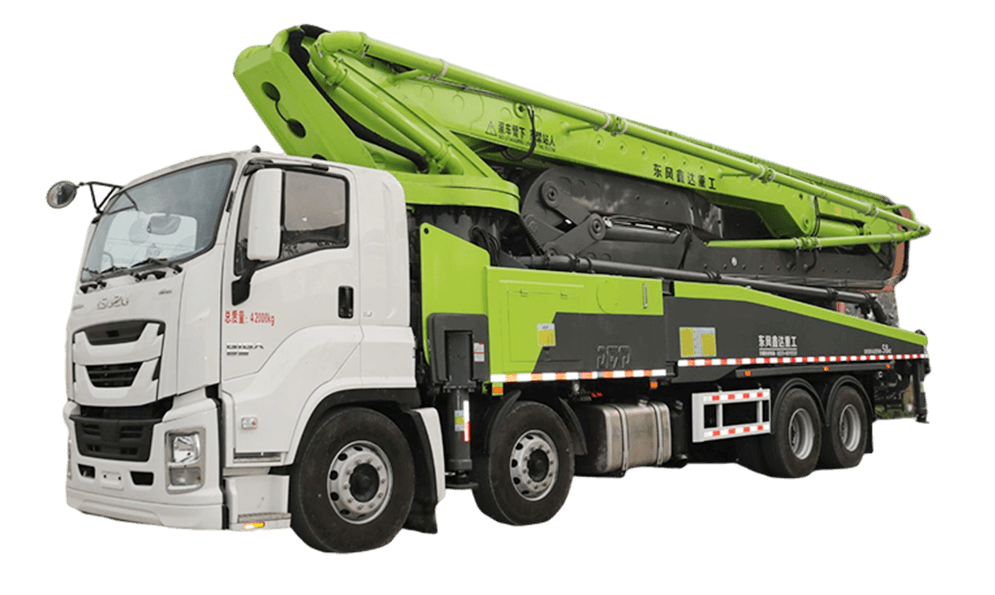

58 Meters of Concrete Pump Truck

58 Meters of Concrete Pump Truck
Technical parameters
Chassis:
Sinotruk Sitrak / Isuzu
Emission standard:
Six countries
Engine brand:
German Man / Isuzu
Engine horsepower:
440/460
Bridge number:
4
Wheel base:
1950+4500+1400/ 2100+4325+1370

DXD5356THBL

project

unit

technical parameters

Chassis and

complete vehicle

parameters

chassis

-

Sinotruk Sitrak / Isuzu

emission standard

-

Six countries

Engine brand

-

German Man / Isuzu

Engine horsepower

Ps

440/460

Bridge number

-

4

wheel base

mm

1950+4500+1400/ 2100+4325+1370

Total length * total width * total height

mm

13800*2550*4000

Vehicle quality

g

44000

Arm frame and

support leg

parameters

Maximum fabric height

mm

57200

Maximum fabric radius

mm

52000

Maximum fabric depth

mm

41000

Arm frame folding mode

-

RZ

The first arm

length

mm

12300

corner

°

89°

The second arm

length

mm

9600

corner

°

180°

The third arm

length

mm

8950

corner

°

180°

The fourth arm

length

mm

10900

corner

°

235°

The fifth arm

length

mm

8100

corner

°



180°

The sixth arm

length

mm



3500

corner

°

90°

Turn table rotation Angle

-

359°





Open the leg

-

X- H

Front leg spread width

mm

10300

Rear leg spread width

mm

11800

Pumping system

Maximum theoretical pumping capacity

m³/h

180

Maximum export pressure

Mpa

8.5

The number of theoretical pumps

Time / minute

26

Hydraulic system pressure

Mpa

32

The inner diameter of the conveying cylinder

mm

260

Delivery cylinder trip

mm

2100

Transmission pipe diameter

mm

125

Hydraulic oil cooling mode

-

air patenting

Pumping the concrete collapse degree

mm

160-220

Maximum aggregate size

mm

40

Hydraulic system type

-

open-type system

More Parameter Information
Dongfeng Xinda 58 Meters Pump Truck Advantage

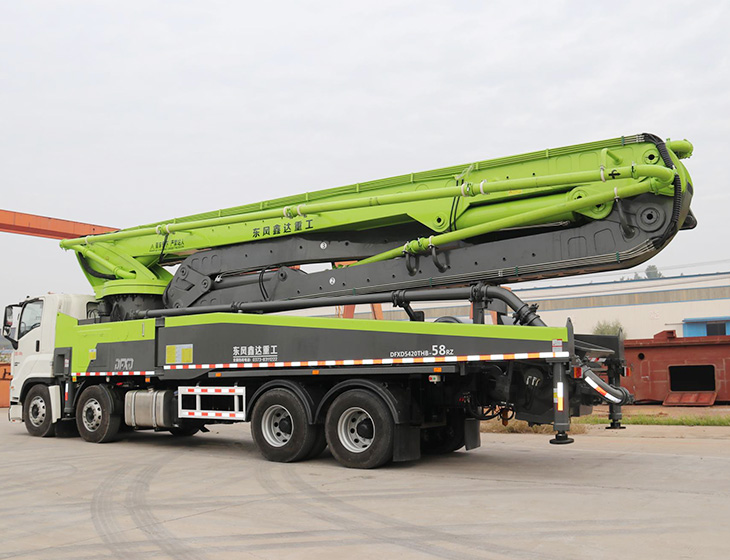

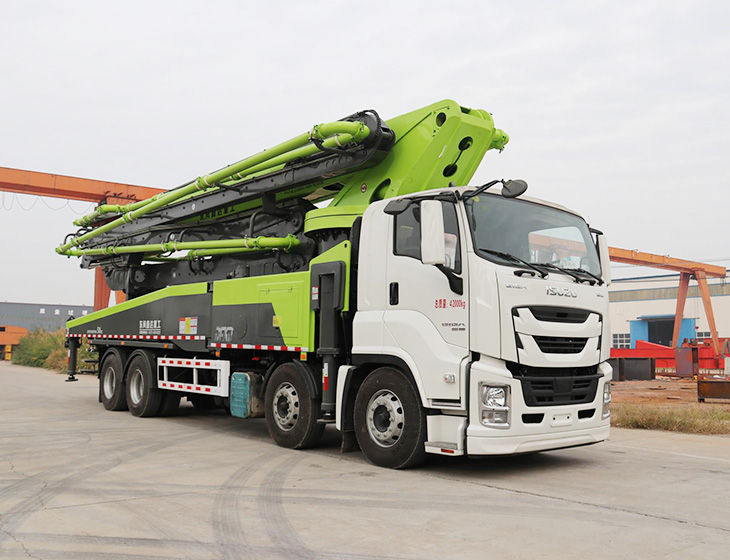

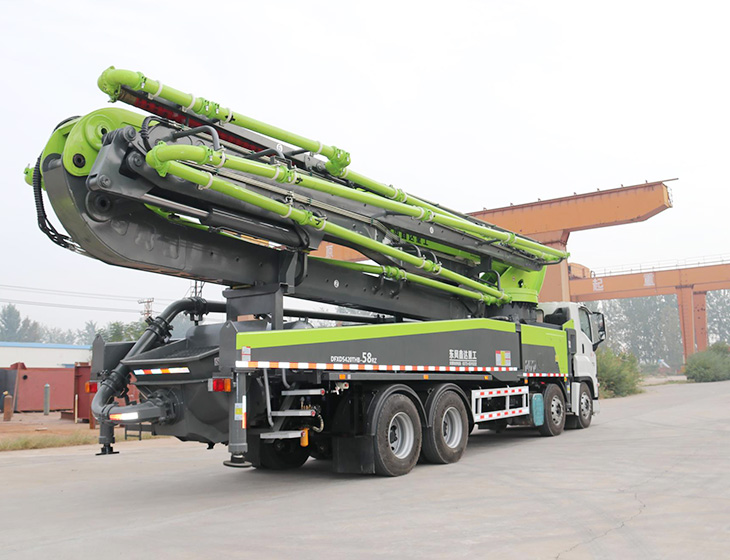

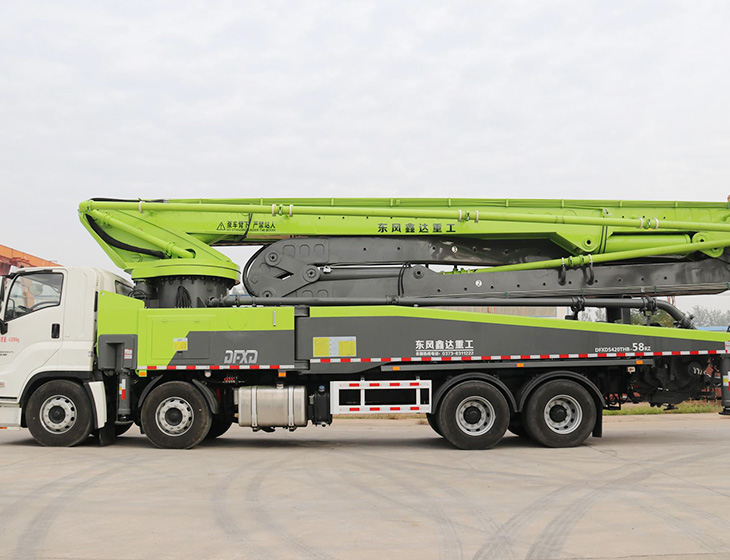

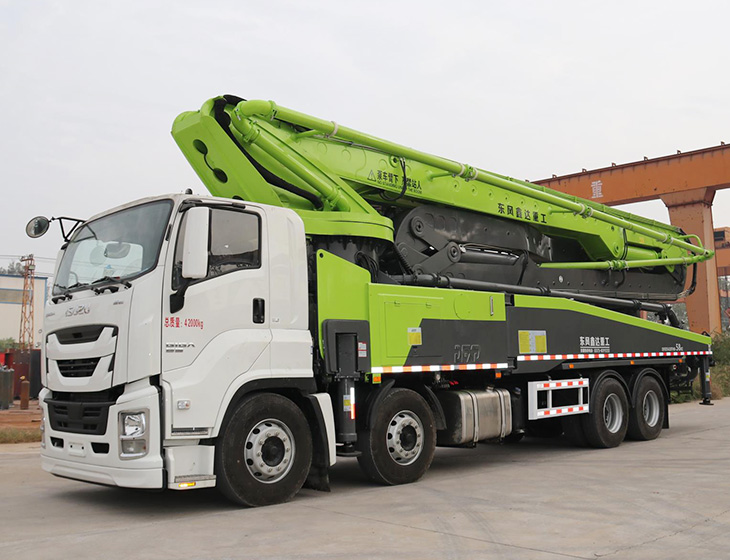

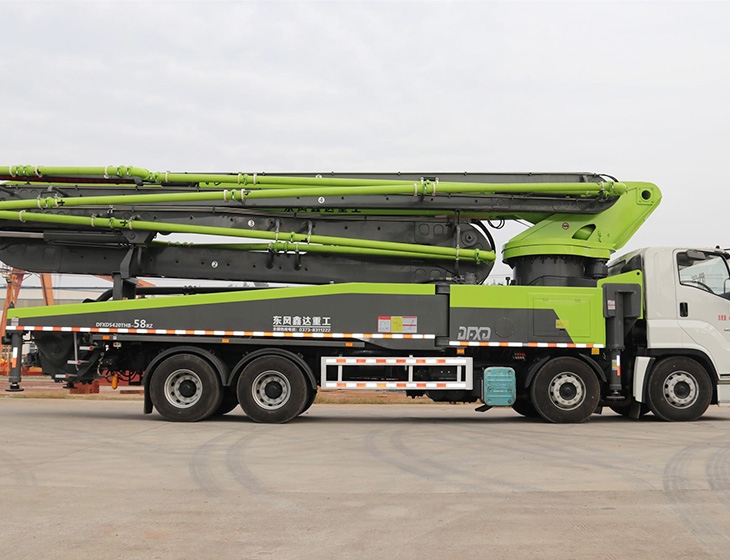

58 Meters of Concrete Pump Truck
58 Meters of Concrete Pump Truck
58 Meters of Concrete Pump Truck
58 Meters of Concrete Pump Truck
58 Meters of Concrete Pump Truck
Tailor your best partner
In 2016, the 50 m boom pump car, the limit number of meters, and the legal car is not overweight.
The whole vehicle design, reasonable and lean
The total length of the vehicle is 12.3 meters, and the total height is 4 meters, which can easily meet the national urban planning, high- speed rail, high-speed rail, water conservancy, etc Demand and use of construction projects.
Pumping work, strong and efficient
The pumping system adopts a large diameter conveying cylinder, which is strong and efficient, and the maximum theoretical pumping capacity can reach 140m³ / h.
The optimal design and material
The use of modern processing and production technology, heavy investment in the research and development of lightweight boom structure, the boom through axis structure boom connection design, the table using "S" tilt technology, the pump truck leg span is smaller, the boom stability can be higher.
Safe, reliable, stable and efficient
Using the active shock absorption technology of the boom, the vibration range of the boom under the full working condition is ± 0.2 meters, and the connection design of the open shaft structure boom reduces the impact on the key parts of the boom by more than 30%.
Energy conservation and emission reduction, economic reliability
The pumping displacement is automatically matched with the engine power, and adapadjusted during the working process, the fuel consumption is reduced by 15%. Wireless remote control with one key start Dynamic system, easy to operate, economical and reliable.
Intelligent digital, real-time control
The electronic control system is connected with the cloud platform, freely mastering the device status, self-diagnosis, etc., and can view the device position, driving path, and working time at the terminal in real time.
Professional focus, whole-hearted service
Free one-to-one on-site training service, free door-to-door inspection service, 1 hour rapid response, 24 hours after-sales service, efficient service, The whole worry-free.
A Schematic Diagram Of The Main Assembly
