Pump Truck

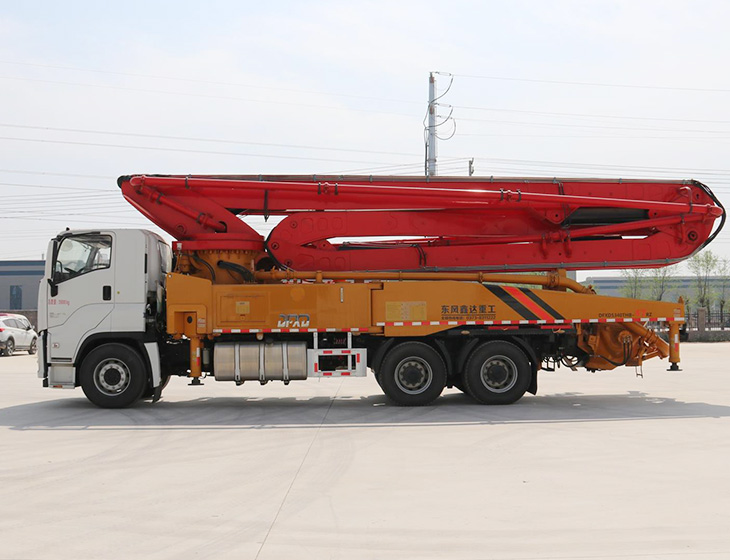

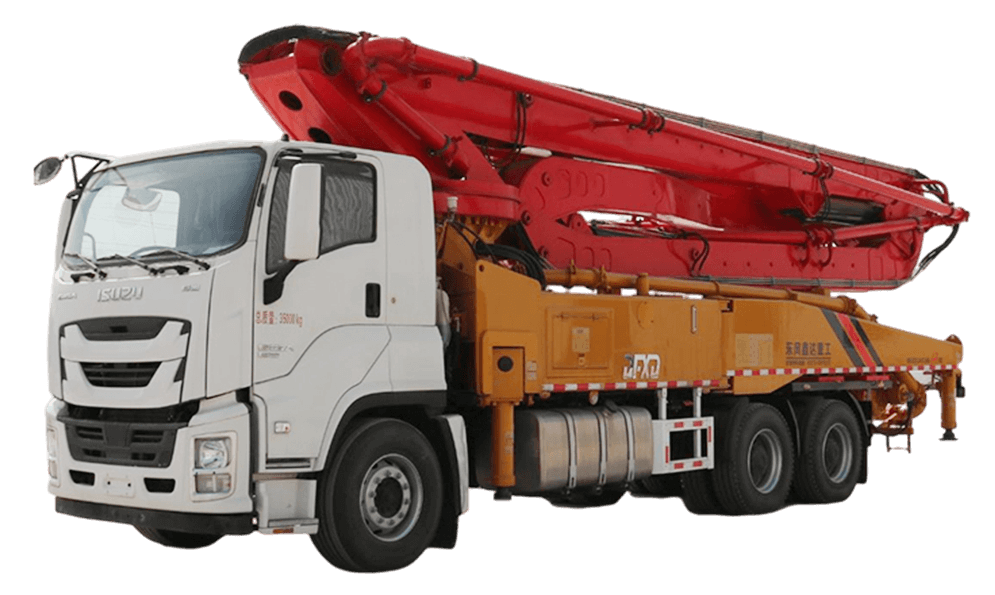

47 Meters of Concrete Pump Truck

The shortest body, the shortest body, the shortest wheelbase, the best passability, the most suitable for rural use of the pump truck.
47 Meters of Concrete Pump Truck
Technical parameters
Chassis:
Sinotruk steyr / Isuzu
Emission standard:
Six countries
Engine brand:
Weichai / Isuzu
Engine horsepower:
350/420
Bridge number:
3
Wheel base:
4750+1350/4800+1370



DXD5350THBL

project

unit

technical parameters

Chassis and

complete vehicle

parameters

chassis

-

Sinotruk steyr / Isuzu

emission standard

-

Six countries

Engine brand

-

Weichai / Isuzu

Engine horsepower

Ps

350/420

Bridge number

-

3

wheel base

mm

4750+1350/4800+1370

Total length * total width * total height

mm

11700*2500*3900

Vehicle quality

g

35000

Arm frame and

support leg

parameters

Maximum fabric height

mm

46300

Maximum fabric radius

mm

41200

Maximum fabric depth

mm

32000

Arm frame folding mode

-

RZ

The first arm

length

mm

9700

corner

°

89°

The second arm

length

mm

7850

corner

°

180°

The third arm

length

mm

7550

corner

°

180°

The fourth arm

length

mm

8450

corner

°

235°

The fifth arm

length



mm



8750

corner

°

180°

Turn table rotation Angle

°

359°

Open the leg

-

X- H





Front leg spread width

mm

9500

Rear leg spread width

mm

10300

Pumping system

Maximum theoretical pumping capacity

m³/h

140

Maximum export pressure

Mpa

8.5

The number of theoretical pumps

Time / minute

25

Hydraulic system pressure

Mpa

32

The inner diameter of the conveying cylinder

mm

260

Delivery cylinder trip

mm

1800

Transmission pipe diameter

mm

125

Hydraulic oil cooling mode

-

air patenting

Pumping the concrete collapse degree

mm

160-220

Maximum aggregate size

mm

40

Hydraulic system type

-

open-type system

More Parameter Information
Dongfeng Xinda 47 Meters Pump Truck Advantage

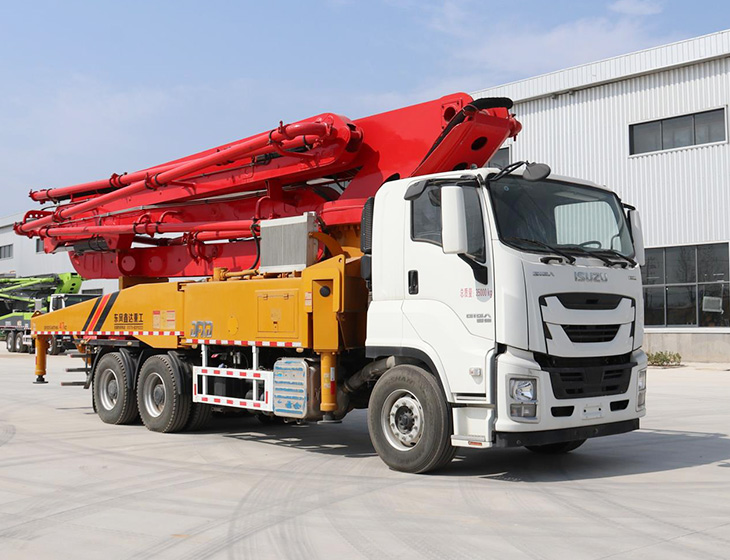

47 Meters of Concrete Pump Truck

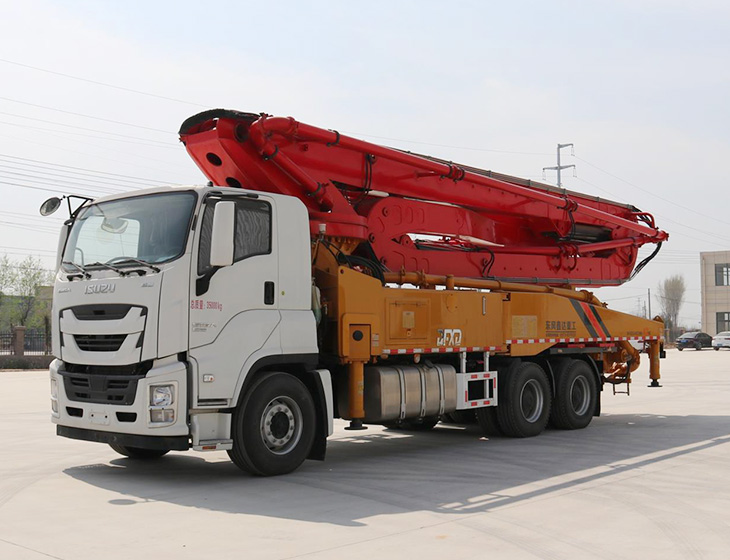

47 Meters of Concrete Pump Truck

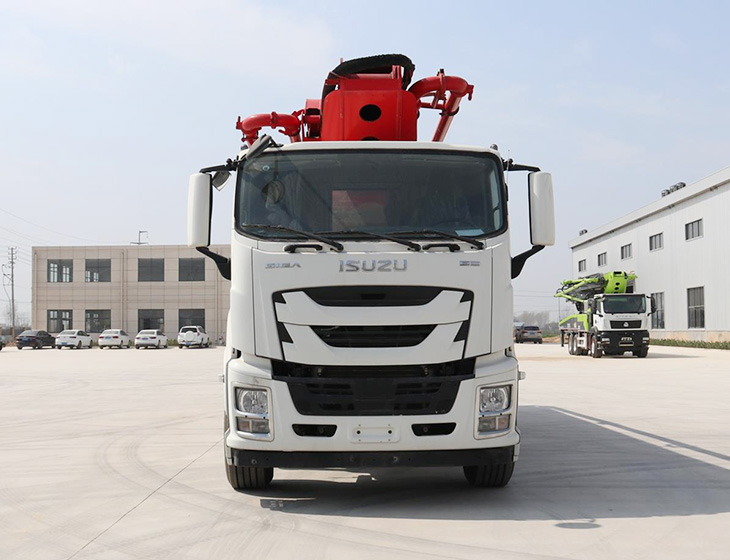

47 Meters of Concrete Pump Truck

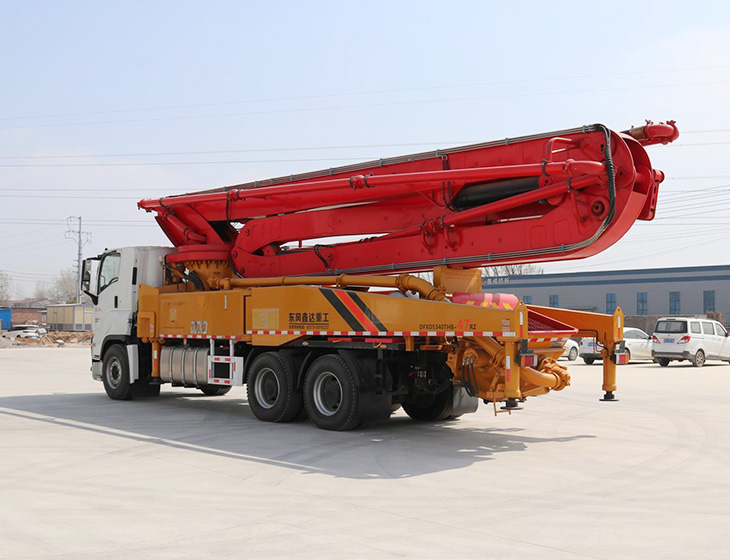

47 Meters of Concrete Pump Truck

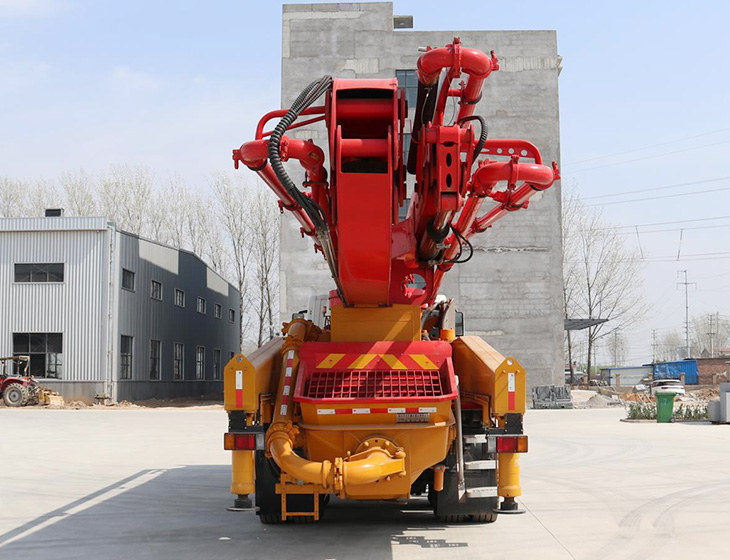

47 Meters of Concrete Pump Truck
Tailor your best partner
In 2015, the 47-meter pump truck was launched, which is suitable for the 1-9 floors of urban buildings.
The whole vehicle design, reasonable and lean
The total length of the vehicle is 11.7meters, and the total height is 3.9 meters, which can easily meet the national urban planning, high-speed rail, high-speed rail, water conservancy, etc Demand and use of construction projects.
Pumping work, strong and efficient
The pumping system adopts a large diameter conveying cylinder, which is strong and efficient, and the maximum theoretical pumping capacity can reach 140m³ / h.
The optimal design and material
The use of modern processing and production technology, heavy investment in the research and development of lightweight boom structure, the boom through axis structure boom connection design, the table using "S" tilt technology, the pump truck leg span is smaller, the boom stability can be higher.
Safe, reliable, stable and efficient
Using the active shock absorption technology of the boom, the vibration range of the boom under the full working condition is ± 0.2 meters, and the connection design of the open shaft structure boom reduces the impact on the key parts of the boom by more than 30%.
Energy conservation and emission reduction, economic reliability
The pumping displacement is automatically matched with the engine power, and adapadjusted during the working process, the fuel consumption is reduced by 15%. Wireless remote control with one key start Dynamic system, easy to operate, economical and reliable.
Intelligent digital, real-time control
The electronic control system is connected with the cloud platform, freely mastering the device status, self-diagnosis, etc., and can view the device position, driving path, and working time at the terminal in real time.
Professional focus, whole-hearted service
Free one-to-one on-site training service, free door-to-door inspection service, 1 hour rapid response, 24 hours after-sales service, efficient service, The whole worry-free.
A Schematic Diagram Of The Main Assembly
