Mixing integrated pump truck

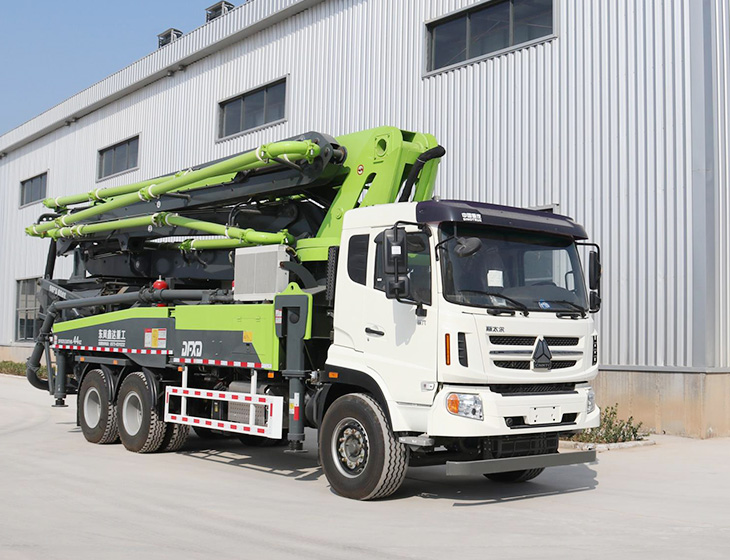

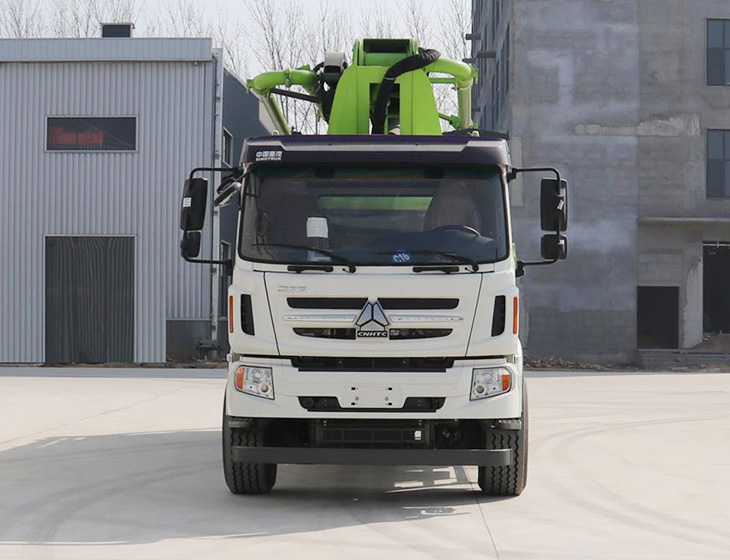

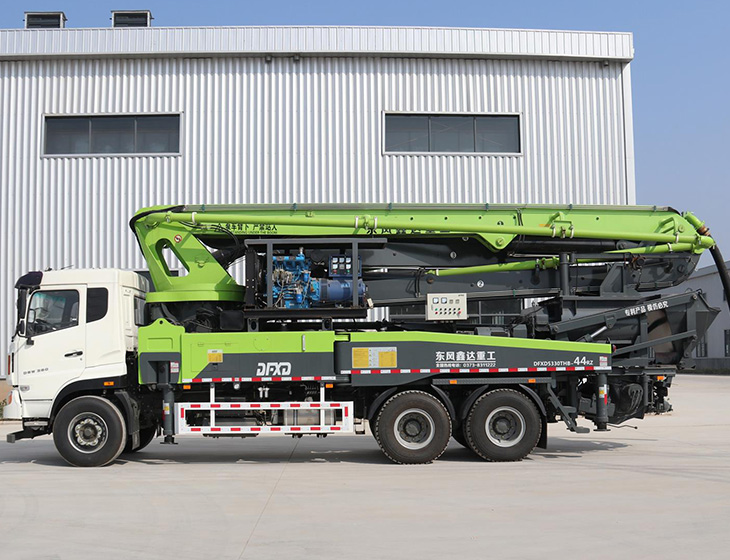

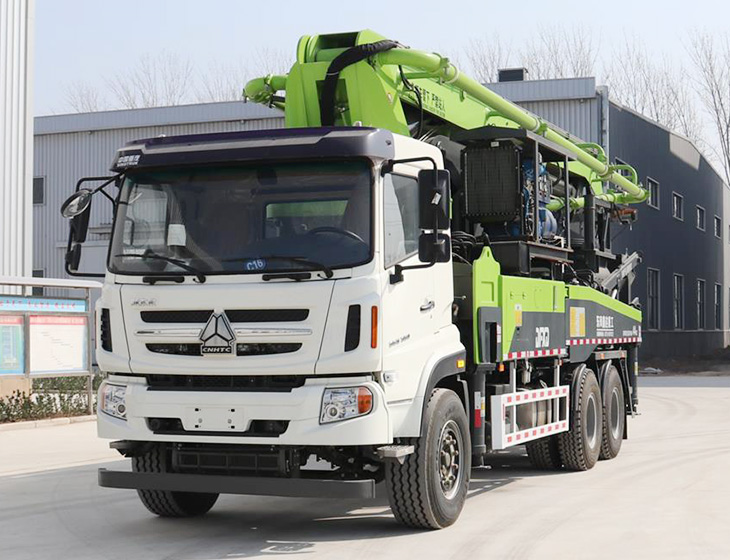

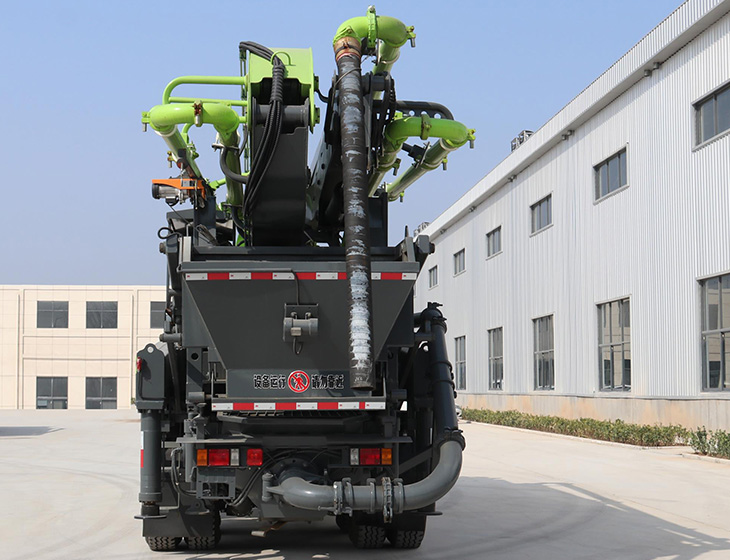

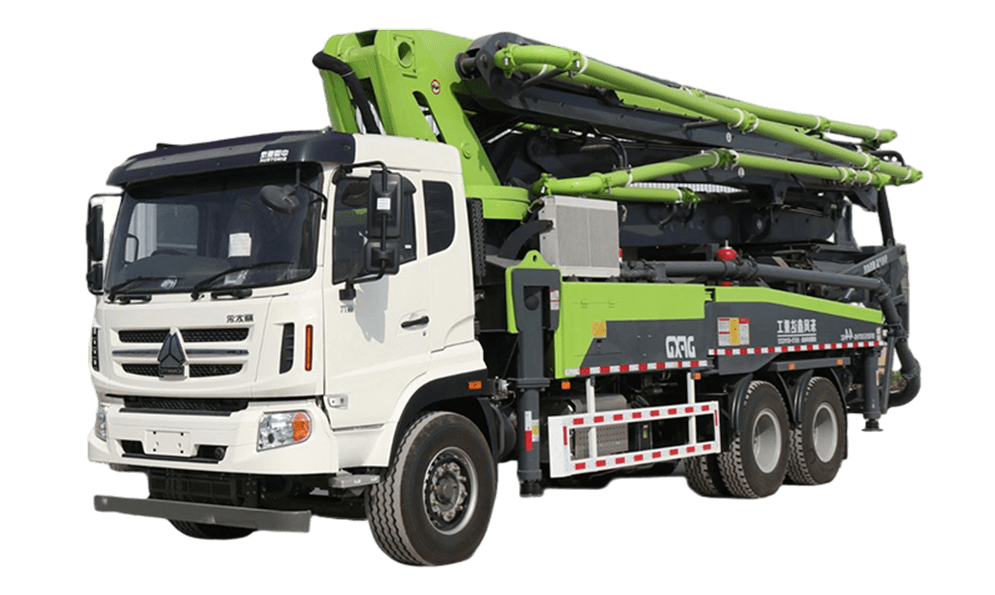

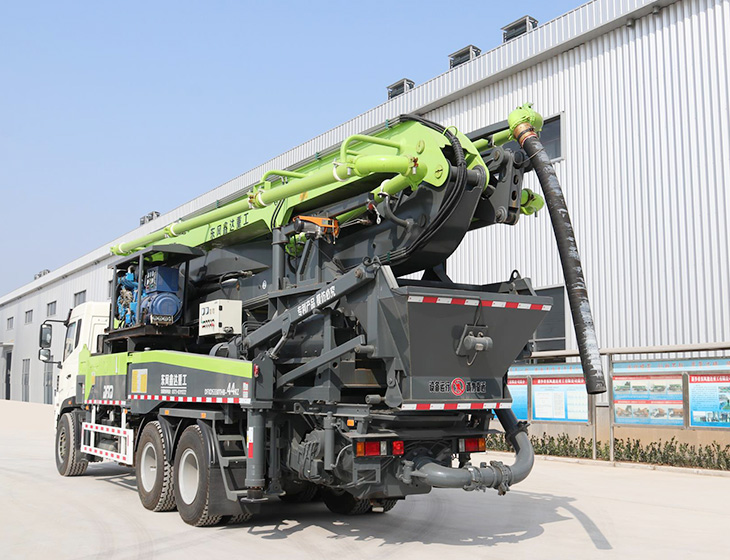

44 Meters Mixing Integrated Pump Truck

Create the first of rural on-site self-mixing pump truck, the absolute leader of the integrated pump truck industry
44 Meters Mixing Integrated Pump Truck
Technical parameters
Chassis:
Sinotruk steyr / Howo/ Hongyan
Emission standard:
Six countries
Engine brand:
Weichai/ man/Jade wood
Engine horsepower:
350
Bridge number:
3
Wheel base:
4750+1350/4400+1400
DXD5330THBL

project

unit

technical parameters

Chassis and

complete vehicle      parameters

chassis

-

Sinotruk steyr /Howo/Hongyan

emission standard

-

Six countries

Engine brand

-

Weichai/ man/Jade wood

Engine horsepower

Ps

350

Bridge number

-

3

wheel base

mm

4750+1350/4400+1400

Total length * total width * total height

mm

10800*2500*3850

Vehicle quality

g

32000

Arm frame and

support leg

parameters

Maximum fabric height

mm

37200

Maximum fabric radius

mm

33000

Maximum fabric depth

mm

25000

Arm frame folding mode

-

RZ

The first arm

length

mm

7700

corner

°

89°

The second arm

length

mm

6300

corner

°

180°

The third arm

length

mm

5850

corner

°

180°

The fourth arm

length

mm

6700

corner

°

235°

The fifth arm

length

mm

7200

corner

°

180°

Turn table rotation Angle

°

359°

Open the leg

-

X-H


  Front leg spread width mm 7800
Rear leg spread width mm 8300
Pumping system Maximum theoretical pumping capacity m³/h 120
Maximum export pressure Mpa 8.5
The number of theoretical pumps Time / minute 25
Hydraulic system pressure Mpa 32
The inner diameter of the conveying cylinder mm 230
Delivery cylinder trip mm 1600
Transmission pipe diameter mm 125
Hydraulic oil cooling mode - air patenting
Pumping the concrete collapse degree mm 160-220
Maximum aggregate size mm 40
Hydraulic system type - open-type system
The stirring system Mixer type - Mandatory mixer
productivity m³/h 25-35
More Parameter Information
Dongfeng Xinda 44 Meters Mixing Integrated Pump Truck Advantages
44 Meters Mixing Integrated Pump Truck
44 Meters Mixing Integrated Pump Truck
44 Meters Mixing Integrated Pump Truck
44 Meters Mixing Integrated Pump Truck
44 Meters Mixing Integrated Pump Truck
Mixing pump truck market industry leader
Since 2015, it developed the first 38 m mixing integrated pump truck, pioneered the rural field self-mixing pump truck, and developed the longest 44 m and 46 m mixing integrated pump truck in the industry. The mixer bucket invented the hydraulic rail-less way, overturned the traditional use mode of rail wire rope, and became the absolute leader in the integrated mixing pump truck industry.
The rural site through the strong sex
The total length of the car is 10.8 meters, the total height is 3.85 meters, and the shortest wheelbase is 4.4 meters, which is the smallest in the same meter section of the current peer, and the flexible transition field is more easy to deal with the narrow and complex construction site in rural areas.
Pumping work, strong and efficient
The pumping system adopts large displacement pumping system, pumping does not pick stone, using mandatory mixer, can stir 0.75 cubic concrete at one time, can stir pump 30 cubic meters per hour, the maximum theoretical pumping capacity reaches 110m³ / h.
Legal road transition is fast
Pump truck and mixer perfect combination, the regulations are not overweight, using the domestic first hydraulic lifting hopper, subvert the industry's traditional rail wire rope lifting mode, low fault, no installation, no disassembly, each work directly save 1 hour of transfer time.
A multi-purpose, pumping commercial concrete, when the vehicle pump use
It can not only pump concrete, but also pump commercial concrete and commercial concrete pumping capacity of 90 cubic meters per hour; if the site is small, the car cannot enter or theconstruction area is large, the arm can not cover, the tail control second car pump, the horizontal pumping distance can reach 300 meters, easy to deal with various complicated conditions.
Energy conservation, emission reduction, economic reliability
The mixer can be connected to three-phase electricity, the standby generator set for field work, the pumping displacement matches the engine power automatically, the adaptive adjustment during the working process, and the fuel consumption is reduced by 10%. The electronic control system is connected with the cloud platform, freely mastering the device status, self-diagnosis, etc., and can view the device position, driving path, and working time at the terminal in real time.
A Schematic Diagram Of The Main Assembly
